Carbon Steel Angle

Angle steel, commonly known as angle iron, is a long strip of steel with two sides perpendicular to each other. Angle steel can be composed of different force components according to the different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, bus support installation, and warehouse shelves. Angle steel is carbon structural steel for construction, is a simple section of steel, mainly used for metal components and the framework of the plant. In use, it is required to have good weldability, plastic deformation performance and mechanical strength.

+8613685310104

sales14@hbis-group.com

E-mail

Product Categories:

Angle Steel

Keywords:

Angle Steel

Related Products

PRODUCT DETAILS

Product Description

Product Parameters

Material	A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540
Scope of production	H100100-H400400H15075 -H900300
Thickness	1-30mm
Width	15-400mm
Length	6m, 9m, 12mor according to customer requirements
Technology	Hot rolled, welded
Standard	ASTM,AISI,JIS,GB, DIN,EN
Surface	Galvanized, painted;or according to your requirements
supply capacity	2000tons/Day
Business Type	Manufacturer
Certificate	ISO, SGS,BV
Application	Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
loading port	Any port in China
Packaging	Standard export packing or as your request
Payment Method	Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.

FACTORY APPEARANCE

The leading products of Tangshan Steel Group include: Bars, Plates, Sheets, Wire rods, profiles, hot rolled strips, hot rolled sheets, cold rolled sheets, galvanized sheets, color coated sheets, welded pipes, Seamless Pips, ERW Pipes, Vanadium pentoxide, Vanadium-Nitrogen alloys, vanadium-iron alloys and other series of products, which cover almost all specifications required by the market.

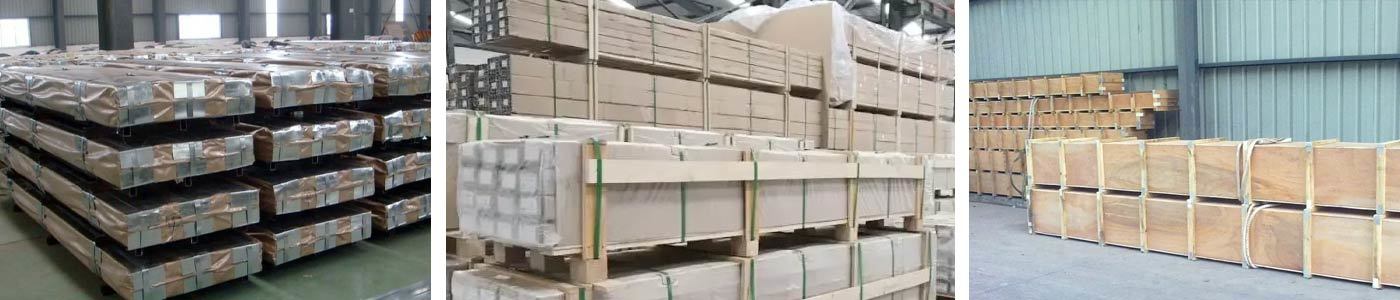

PACKING AND DELIVERY

model								Single Angle Steel								Double Angle Steel
		Round Corners	Centroid Moment	Cross-sectional area	quality	Moment of inertia	Section modulus		Radius of gyration			iy, 当 a 为下列数值
		R	Z0	A	quality	Ix	Wxmax	Wxmin	ix	ix0	iy0	6mm	8mm	10mm	12mm		14mm
		（mm）		(cm2)	(kg/m)	(cm4)	(cm3)		(cm)			(cm)
L90×	6	10	24.4	10.64	8.35	82.77	33.99	12.61	2.79	3.51	1.8	3.91	3.98	4.05	4.12		4.2
	7		24.8	12.3	9.66	94.83	38.28	14.54	2.78	3.5	1.78	3.93	4	4.07	4.14		4.22
	8		25.2	13.94	10.95	106.5	42.3	16.42	2.76	3.48	1.78	3.95	4.02	4.09	4.17		4.24
	10		25.9	17.17	13.48	128.6	49.57	20.07	2.74	3.45	1.76	3.98	4.06	4.13	4.21		4.28
	12		26.7	20.31	15.94	149.2	55.93	23.57	2.71	3.41	1.75	4.02	4.09	4.17	4.25		4.32
L100×	6	12	26.7	11.93	9.37	115	43.04	15.68	3.1	3.91	2	4.3	4.37	4.44	4.51		4.58
	7		27.1	13.8	10.83	131	48.57	18.1	3.09	3.89	1.99	4.32	4.39	4.46	4.53		4.61
	8		27.6	15.64	12.28	148.2	53.78	20.47	3.08	3.88	1.98	4.34	4.41	4.48	4.55		4.63
	10		28.4	19.26	15.12	179.5	63.29	25.06	3.05	3.84	1.96	4.38	4.45	4.52	4.6		4.67
	12		29.1	22.8	17.9	208.9	71.72	29.47	3.03	3.81	1.95	4.41	4.49	4.56	4.64		4.71
	14		29.9	26.26	20.61	236.5	79.19	33.73	3	3.77	1.94	4.45	4.53	4.6	4.68		4.75
	16		30.6	29.63	23.26	262.5	85.81	37.82	2.98	3.74	1.93	4.49	4.56	4.64	4.72		4.8
L110×	7	12	29.6	15.2	11.93	177.2	59.78	22.05	3.41	4.3	2.2	4.72	4.79	4.86	4.94		5.01
	8		30.1	17.24	13.53	199.5	66.36	24.95	3.4	4.28	2.19	4.74	4.81	4.88	4.96		5.03
	10		30.9	21.26	16.69	242.2	78.48	30.6	3.38	4.25	2.17	4.78	4.85	4.92	5		5.07
	12		31.6	25.2	19.78	282.6	89.34	36.05	3.35	4.22	2.15	4.82	4.89	4.96	5.04		5.11
	14		32.4	29.06	22.81	320.7	99.07	41.31	3.32	4.18	2.14	4.85	4.93	5	5.08		5.15
L125×	8	14	33.7	19.75	15.5	297	88.2	32.52	3.88	4.88	2.5	5.34	5.41	5.48	5.55		5.62
	10		34.5	24.37	19.13	361.7	104.8	39.97	3.85	4.85	2.48	5.38	5.45	5.52	5.59		5.66
	12		35.3	28.91	22.7	423.2	119.9	47.17	3.83	4.82	2.46	5.41	5.48	5.56	5.63		5.7
	14		36.1	33.37	26.19	481.7	133.6	54.16	3.8	4.78	2.45	5.45	5.52	5.59	5.67		5.74
L140×	10	14	38.2	27.37	21.49	514.7	134.6	50.58	4.34	5.46	2.78	5.98	6.05	6.12	6.2		6.27
	12		39	32.51	25.52	603.7	154.6	59.8	4.31	5.43	2.77	6.02	6.09	6.16	6.23		6.31
	14		39.8	37.57	29.49	688.8	173	68.75	4.28	5.4	2.75	6.06	6.13	6.2	6.27		6.34
	16		40.6	42.54	33.39	770.2	189.9	77.46	4.26	5.36	2.74	6.09	6.16	6.23	6.31		6.38
L160×	10	16	43.1	31.5	24.73	779.5	180.8	66.7	4.97	6.27	3.2	6.78	6.85	6.92	6.99		7.06
	12		43.9	37.44	29.39	916.6	208.6	78.98	4.95	6.24	3.18	6.82	6.89	6.96	7.03		7.1
	14		44.7	43.3	33.99	1048	234.4	90.95	4.92	6.2	3.16	6.86	6.93	7	7.07		7.14
	16		45.5	49.07	38.52	1175	258.3	102.6	4.89	6.17	3.14	6.89	6.96	7.03	7.1		7.18
L180×	12	16	48.9	42.24	33.16	1321	270	100.8	5.59	7.05	3.58	7.63	7.7	7.77	7.84		7.91
	14		49.7	48.9	38.38	1514	304.6	116.3	5.57	7.02	3.57	7.67	7.74	7.81	7.88		7.95
	16		50.5	55.47	43.54	1701	336.9	131.4	5.54	6.98	3.55	7.7	7.77	7.84	7.91		7.98
	18		51.3	61.95	48.63	1881	367.1	146.1	5.51	6.94	3.53	7.73	7.8	7.87	7.95		8.02
L200×	14	18	54.6	54.64	42.89	2104	385.1	144.7	6.2	7.82	3.98	8.47	8.54	8.61	8.67		8.75
	16		55.4	62.01	48.68	2366	427	163.7	6.18	7.79	3.96	8.5	8.57	8.64	8.71		8.78
	18		56.2	69.3	54.4	2621	466.5	182.2	6.15	7.75	3.94	8.53	8.6	8.67	8.75		8.82
	20		56.9	76.5	60.06	2867	503.6	200.4	6.12	7.72	3.93	8.57	8.64	8.71	8.78		8.85
	24		58.4	90.66	71.17	3338	571.5	235.8	6.07	7.64	3.9	8.63	8.71	8.78	8.85		8.92

Packing and delivery

The products have been exported to more than 100 countries and regions, including Turkey, Russia, Saudi Arabia, UAE, Iran, Kuwait, Poland, Philippines, Indonesia, Kazakhstan, Brazil, Mexico, Egypt, Nigeria, South Africa, Australia, etc.

PRODUCT TESTING

Detection

FAQ

Q: Will you deliver on time?

A: Yes, we promise to provide the best quality products and deliver on time. Honesty is the purpose of our company.

Q: What product information do I need to provide?

A: You need to provide the grade, width, thickness, coating and tonnage you need to purchase

Q: Can I visit your factory?

A: Of course, we welcome customers from all over the world to visit

Q: Will all the charges be clear?

A: Our quotations are simple and easy to understand. It will not cause any extra costs.

Q. Do you test all your goods before delivery?

Yes, we will test the goods before delivery.

CUSTOMER VISIT

PARTNERS

Tang steel is the one of the earliest and largest state-owned steel enterprise in Tangshan and the national A-level environmental performance enterprise, is the country’s “first batch of green factories”, it is praised as the "cleanest steel factory in the world" by the World Steel Association, and won the "National May Day Labor Award" and "National Civilized Unit"and other honorary titles.

APPLICATION AREAS

The main products include cold-rolled annealed plates, cold-rolled coated plates, hot-rolled steel sections, medium and thick plates, large sections, medium sections, bars, wires, etc.
